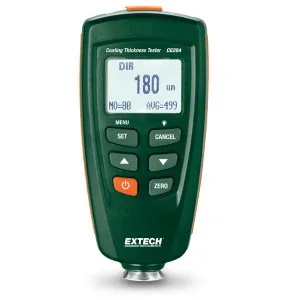

The Extech CG204 is a portable meter designed for non-invasive coating thickness measurements with automatic recognition of ferrous and non-ferrous substrates. The tester uses dual technology to indicate ferrous (magnetic induction measurement) and non-ferrous (eddy current measurement) substrates. It features single and continuous measurement modes as well as direct and group working modes, 400-reading memory storage, and user-programmable high/low alarms. The CG204 comes with two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards, pouch case, and user manual.
Features
Automatic substrate recognition
Magnetic induction for ferrous substrates
Eddy current measurement for non-ferrous substrates
Easy-to use menu system
Two measuring modes: Single and Continuous
Two working modes: Direct and Group
Memory stores 400 readings: 80 Direct and 320 Group
User-programmable high/low alarms
Min/Max/Average
One or two point calibration
USB interface includes software
Complete with two AAA batteries, USB cable, software, Calibration Iron, Calibration Aluminum, Precision Standards, and pouch case
Specification
Sensor Probe: Ferrous / Non-Ferrous
Working Principle: Magnetic Induction / Eddy Current
Measuring Range:
Ferrous: 0 to 1250μm / 0 to 49mils
Non-Ferrous: 0 to 1250μm / 0 to 49milsBasic Accuracy ±3%
Resolution 0.1μm (0.004mils)
Minimum Curvature Radius:
Ferrous:: 1.5mm (59.06mils)
Non-Ferrous:: 3mm (118.1mils)Minimum Diameter:
Ferrous: 7mm (275.6mils)
Non-Ferrous: 5mm (196.9mils)Minimum Thickness:
Ferrous: 0.5mm (19.69mils)
Non-Ferrous: 0.3mm (11.81mils)Dimensions 4.7 x 2.4 x 1.25" (120 x 62 x 32mm)
Weight 6.17oz (175g)
